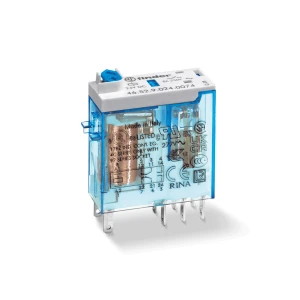

Industrial Relay, DPDT, 12VDC Coil, 8A, Test Button, Finder 46.52.9.012.0040
Coil: 12 V DC, 0.5 W, operating range 8.8 to 13.2 V DC
Contacts: 2 pole changeover (DPDT), 8 A, 250 V AC, AgNi, cadmium free
Options: lockable test button and mechanical indicator
Electrical life: 100,000 cycles
Insulation coil to contacts: 6 kV
Ambient temperature: -40 to +70 °C
Dimensions: 32.8 x 29 x 12.4 mm
Approvals (per Finder data sheet): cURus, CSA, CE, UKCA
12VDC DPDT relay Finder 46.52.9.012.0040 (46.52, 4652, 12 VDC, 12V DC coil), 2 pole changeover (2 CO) plug-in industrial relay, 8 A at 250 V AC contacts, lockable test button and mechanical indicator, 12 V DC coil (operating range 8.8 to 13.2 V DC, 0.5 W). Mounts in the Finder 97.02 screw terminal socket for 35 mm DIN rail or panel. Finder 46.52 relays are available in 2 coil voltages: 12VDC (46.52.9.012.0040) and 24VAC (46.52.8.024.0040).
