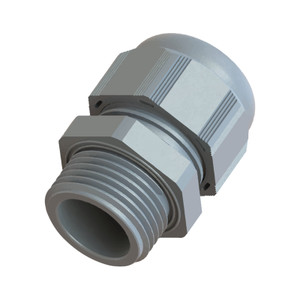

Cord Grip, Plastic, M32x1.5, Gray RAL 7001, Cable OD 0.472-0.787 IN (12-20mm), IP68, Lutze TOP-T, FPM32G-R

$4.55
Write a Review
SKU:
FPM32G-R
PDF Data Sheet:
LUTZE_80_Plastic_Metric_Fittings.pdf
MFR:
LUTZE
PRODUCT LINE:
TOP-T
TYPE:
Cord Grip
THREAD:
M32x1.5
THREAD STANDARD:
Metric EN 60423
CABLE OD RANGE IN:
0.472-0.787
CABLE OD RANGE MM:
12-20
MATERIAL:
Polyamide 6
SEAL:
CR Chloroprene Rubber
COLOR:
Gray
COLOR CODE:
RAL 7001
INGRESS PROTECTION:
IP68
APPROVALS:
UL Listed
TEMP RATING:
-20C to +100C
COUNTRY OF ORIGIN:
TR
WARRANTY:
5 years
interval quantity:
10
fbt-product:
2946
Cord Grip, Plastic, M32x1.5, Gray RAL 7001, Cable OD 0.472-0.787 IN (12-20mm), IP68, Lutze TOP-T, FPM32G-R
Image is representational – refer to Mfr. Specifications

Prop 65 Warning
Lutze TOP-T plastic cable fitting (cord grip / cable gland), M32x1.5, Gray RAL 7001. Clamping range 0.472-0.787 inch (12-20 mm). Integrated strain relief, wide sealing and clamping range, easy to install. Polyamide 6 body with CR chloroprene rubber seal. IP68 per EN 60529. UL Listed. Manufactured according to EN 62444. Temperature range -20C to +100C permanent, -30C to +150C intermittent. LOCKNUT NOT INCLUDED — order the matching LPM32G separately. Sold each; supplied in boxes of 10. FPM32G-R
