Cord Grip, Plastic, NPT 1/2", Gray RAL 7001, Cable OD 0.394-0.551 IN (10-14mm), IP68, Lutze TOP-T, FPNPT12G

$2.30
Write a Review
SKU:
FPNPT12G
PDF Data Sheet:
LUTZE_78_Plastic_NPT_Fittings.pdf
MFR:
LUTZE
PRODUCT LINE:
TOP-T
TYPE:
Cord Grip
THREAD:
NPT 1/2
THREAD STANDARD:
NPT ANSI B1.20.1
CABLE OD RANGE IN:
0.394-0.551
CABLE OD RANGE MM:
10-14
MATERIAL:
Polyamide 6
SEAL:
CR Chloroprene Rubber
COLOR:
Gray
COLOR CODE:
RAL 7001
INGRESS PROTECTION:
IP68
APPROVALS:
UL Listed
TEMP RATING:
-20C to +100C
COUNTRY OF ORIGIN:
TR
WARRANTY:
5 years
interval quantity:
50
fbt-product:
2956

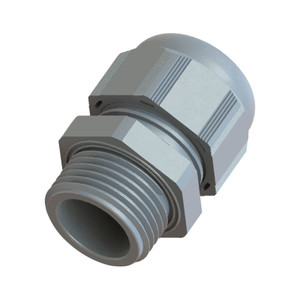

Cord Grip, Plastic, NPT 1/2", Gray RAL 7001, Cable OD 0.394-0.551 IN (10-14mm), IP68, Lutze TOP-T, FPNPT12G
Image is representational – refer to Mfr. Specifications

Prop 65 Warning
Lutze TOP-T plastic cable fitting (cord grip / cable gland), NPT 1/2", Gray RAL 7001. Clamping range 0.394-0.551 inch (10-14 mm). Integrated strain relief, wide sealing and clamping range, easy to install. Polyamide 6 body with CR chloroprene rubber seal. IP68 per EN 60529. UL Listed. Manufactured according to EN 62444. Temperature range -20C to +100C permanent, -30C to +150C intermittent. LOCKNUT NOT INCLUDED — order the matching LPNPT12G separately. Sold each; supplied in boxes of 50. FPNPT12G
