Cord Grip, Plastic, PG 9, Gray RAL 7001, Cable OD 0.157-0.315 IN (4-8mm), IP68, Lutze TOP-T, FPPG9G

$0.95
Write a Review
SKU:
FPPG9G
PDF Data Sheet:
LUTZE_79_Plastic_PG_Fittings.pdf
MFR:
LUTZE
PRODUCT LINE:
TOP-T
TYPE:
Cord Grip
THREAD:
PG 9
THREAD STANDARD:
PG DIN 40430
CABLE OD RANGE IN:
0.157-0.315
CABLE OD RANGE MM:
4-8
MATERIAL:
Polyamide 6
SEAL:
CR Chloroprene Rubber
COLOR:
Gray
COLOR CODE:
RAL 7001
INGRESS PROTECTION:
IP68
APPROVALS:
UL Recognized
TEMP RATING:
-20C to +100C
COUNTRY OF ORIGIN:
TR
WARRANTY:
5 years
interval quantity:
50
fbt-product:
2980

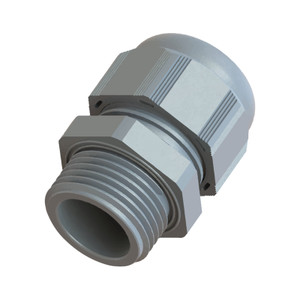

Cord Grip, Plastic, PG 9, Gray RAL 7001, Cable OD 0.157-0.315 IN (4-8mm), IP68, Lutze TOP-T, FPPG9G
Image is representational – refer to Mfr. Specifications

Prop 65 Warning
Lutze TOP-T plastic cable fitting (cord grip / cable gland), PG 9, Gray RAL 7001. Clamping range 0.157-0.315 inch (4-8 mm). Integrated strain relief, wide sealing and clamping range, easy to install. Polyamide 6 body with CR chloroprene rubber seal. IP68 per EN 60529. UL Recognized. Manufactured according to EN 62444. Temperature range -20C to +100C permanent, -30C to +150C intermittent. LOCKNUT NOT INCLUDED — order the matching LPPG9G separately. Sold each; supplied in boxes of 50. FPPG9G
