Disconnect Terminal Block with Ground, Screw Clamp, DIN rail mount, 22-10 AWG, Beige, 600V 30A, DK4NS-TG

Dinkle

$2.23

Write a Review

SKU:: DK4NS-TG
PDF Data Sheet:: DK4NS-TG.pdf
MFR:: DINKLE
WIRE:: AWG 22~10 / 0.34~4mm²
VOLTAGE UL:: 600V
CURRENT UL:: 30A
LEVEL:: Single Level
CONNECTION:: Screw
COLOR:: BEIGE
interval quantity:: 50

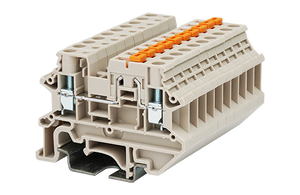

Disconnect Terminal Block with Ground, Screw Clamp, DIN rail mount, 22-10 AWG, Beige, 600V 30A, DK4NS-TG

Image is representational – refer to Mfr. Specifications

Description

Wire range: AWG 22~10 / 0.34~4mm². Rated: UL: 600V / 30A, IEC: 1000V / 32A. Dinkle 4mm² Screw Connection Knife and Disconnect Terminal Block with Ground (DK..N-TG Series). Disconnect function with grounding. Lever wire cage for vibration-proof, high-reliability connections. PA insulation. DIN rail mount.
