EMC Shield-Termination Cord Grip, Metal, NPT 3/8", Nickel-Plated Brass, Cable OD 0.197-0.394 IN (5-10mm), IP68, Lutze TOP-T, FMNPT38-CV

$23.84
Write a Review
SKU:
FMNPT38-CV
PDF Data Sheet:
LUTZE_85_Metal_EMC_Fittings.pdf
MFR:
LUTZE
PRODUCT LINE:
TOP-T
TYPE:
EMC Cord Grip
THREAD:
NPT 3/8
THREAD STANDARD:
NPT ANSI B1.20.1
CABLE OD RANGE IN:
0.197-0.394
CABLE OD RANGE MM:
5-10
MATERIAL:
Brass Nickel Plated
SEAL:
CR Chloroprene Rubber
INGRESS PROTECTION:
IP68
FEATURE:
360 Degree EMC Shield Termination
APPROVALS:
UL Recognized
TEMP RATING:
-20C to +100C
COUNTRY OF ORIGIN:
TR
WARRANTY:
5 years
interval quantity:
10
fbt-product:
3056

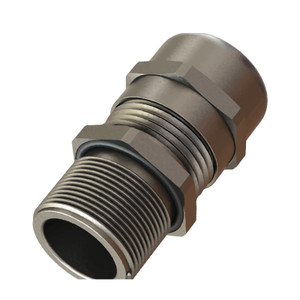

EMC Shield-Termination Cord Grip, Metal, NPT 3/8", Nickel-Plated Brass, Cable OD 0.197-0.394 IN (5-10mm), IP68, Lutze TOP-T, FMNPT38-CV
Image is representational – refer to Mfr. Specifications

Prop 65 Warning
Lutze TOP-T metal EMC cable fitting (shield-termination cord grip / cable gland), NPT 3/8", nickel-plated brass. Clamping range 0.197-0.394 inch (5-10 mm). 360 degree vibration-proof shield termination with large copper-alloy contacts for low contact resistance; adapts to different cable shield sizes. Wide sealing and clamping range. CR chloroprene rubber seal. IP68 per EN 60529. UL Recognized. Manufactured according to EN 62444. LOCKNUT NOT INCLUDED — order the matching LMNPT38 separately. Sold each; supplied in boxes of 10. FMNPT38-CV
