Fuse Disconnect Terminal Block, Screw Clamp, DIN rail mount, 22-10 AWG, Beige, 600V 30A, 5x20mm fuse, 24V LED, DK4N-TFL24(5X20)

Dinkle

$5.91

Write a Review

SKU:: DK4N-TFL24(5X20)
PDF Data Sheet:: DK4N-TFLXX.pdf
MFR:: DINKLE
WIRE:: AWG 22~10 / 0.34~4mm²
VOLTAGE UL:: 600V
CURRENT UL:: 30A
LEVEL:: Single Level
CONNECTION:: Screw
COLOR:: BEIGE
interval quantity:: 50

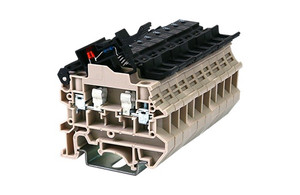

Fuse Disconnect Terminal Block, Screw Clamp, DIN rail mount, 22-10 AWG, Beige, 600V 30A, 5x20mm fuse, 24V LED, DK4N-TFL24(5X20)

Image is representational – refer to Mfr. Specifications

Description

Wire range: AWG 22~10 / 0.34~4mm². Rated: UL: 600V / 30A, IEC: 1000V / 32A. Dinkle 4mm² Screw Connection Fuse Disconnect Terminal Block with hinged swing-out fuse carrier (DK..N-TF Series). Accepts 5x20mm fuse. 24V LED blown-fuse indicator. Lever wire cage for large contact area and vibration resistance. PA insulation. DIN rail mount.
