Terminal Block, Screw Clamp, 3 Level with Level-3 PE, DIN rail mount, 22-12 AWG, Beige, DK2.5N-3L-L3PE

Dinkle

$5.19

Write a Review

SKU:: DK2.5N-3L-L3PE
PDF Data Sheet:: DK2.5N-3L-L3PE.pdf
MFR:: DINKLE
WIRE:: AWG 22~12 / 0.34~2.5mm²
VOLTAGE UL:: 600V
CURRENT UL:: 20A
LEVEL:: 3 Level
CONNECTION:: Screw
COLOR:: BEIGE
interval quantity:: 100

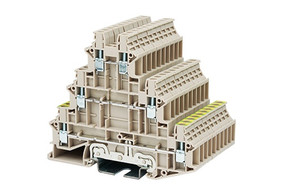

Terminal Block, Screw Clamp, 3 Level with Level-3 PE, DIN rail mount, 22-12 AWG, Beige, DK2.5N-3L-L3PE

Image is representational – refer to Mfr. Specifications

Description

Wire range: AWG 22~12 / 0.34~2.5mm². Rated: UL: 600V / 20A, IEC: 1000V / 24A. Dinkle 2.5mm² Screw Connection Multi-Level (3-Level) Terminal Block (DK..N-3L Series). Space-saving 3-level screw type design. Lever wire cage for large contact area and vibration resistance. PA insulation. DIN rail mount.
