EMC Shield-Termination Cord Grip, Metal, M75x1.5, Nickel-Plated Brass, Large Diameter, Cable OD 1.812-2.440 IN (46-62mm), IP68, Lutze TOP-T, FMM75-CEX

$308.07
Write a Review
SKU:
FMM75-CEX
PDF Data Sheet:
LUTZE_86_Large_Diameter_Metal_EMC_Fittings.pdf
MFR:
LUTZE
PRODUCT LINE:
TOP-T
TYPE:
EMC Cord Grip
THREAD:
M75x1.5
THREAD STANDARD:
Metric EN 60423
CABLE OD RANGE IN:
1.812-2.440
CABLE OD RANGE MM:
46-62
MATERIAL:
Brass Nickel Plated
SEAL:
CR Chloroprene Rubber
INGRESS PROTECTION:
IP68
FEATURE:
360 Degree EMC Shield Termination
APPROVALS:
UL Listed acc. to UL 2225
TEMP RATING:
-20C to +100C
COUNTRY OF ORIGIN:
TR
WARRANTY:
5 years
interval quantity:
1
fbt-product:
3046

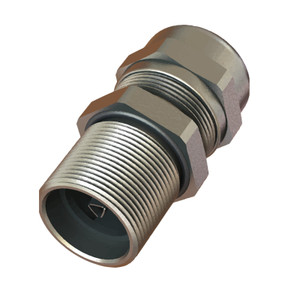

EMC Shield-Termination Cord Grip, Metal, M75x1.5, Nickel-Plated Brass, Large Diameter, Cable OD 1.812-2.440 IN (46-62mm), IP68, Lutze TOP-T, FMM75-CEX
Image is representational – refer to Mfr. Specifications

Prop 65 Warning
Lutze TOP-T metal EMC cable fitting (shield-termination cord grip / cable gland), M75x1.5, nickel-plated brass. Clamping range 1.812-2.440 inch (46-62 mm). 360 degree vibration-proof shield termination with large copper-alloy contacts for low contact resistance; adapts to different cable shield sizes. Two seal inserts for clamping-range adjustment; designed for large-diameter VFD cable. Wide sealing and clamping range. CR chloroprene rubber seal. IP68 per EN 60529. UL Listed acc. to UL 2225. Manufactured according to EN 62444. LOCKNUT NOT INCLUDED — order the matching LMM75 separately. Sold each; supplied in boxes of 1. FMM75-CEX
