EMC Shield-Termination Cord Grip, Metal, NPT 3", Nickel-Plated Brass, Large Diameter, Cable OD 2.363-2.952 IN (60-75mm), IP68, Lutze TOP-T, FMNPT3-CEX

$660.54
Write a Review
SKU:
FMNPT3-CEX
PDF Data Sheet:
LUTZE_86_Large_Diameter_Metal_EMC_Fittings.pdf
MFR:
LUTZE
PRODUCT LINE:
TOP-T
TYPE:
EMC Cord Grip
THREAD:
NPT 3
THREAD STANDARD:
NPT ANSI B1.20.1
CABLE OD RANGE IN:
2.363-2.952
CABLE OD RANGE MM:
60-75
MATERIAL:
Brass Nickel Plated
SEAL:
CR Chloroprene Rubber
INGRESS PROTECTION:
IP68
FEATURE:
360 Degree EMC Shield Termination
APPROVALS:
UL Listed acc. to UL 2225
TEMP RATING:
-20C to +100C
COUNTRY OF ORIGIN:
TR
WARRANTY:
5 years
interval quantity:
1
fbt-product:
3054

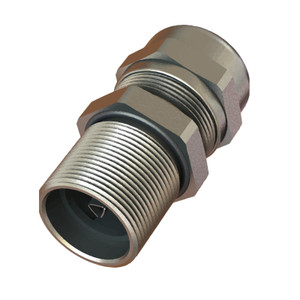

EMC Shield-Termination Cord Grip, Metal, NPT 3", Nickel-Plated Brass, Large Diameter, Cable OD 2.363-2.952 IN (60-75mm), IP68, Lutze TOP-T, FMNPT3-CEX
Image is representational – refer to Mfr. Specifications

Prop 65 Warning
Lutze TOP-T metal EMC cable fitting (shield-termination cord grip / cable gland), NPT 3", nickel-plated brass. Clamping range 2.363-2.952 inch (60-75 mm). 360 degree vibration-proof shield termination with large copper-alloy contacts for low contact resistance; adapts to different cable shield sizes. Two seal inserts for clamping-range adjustment; designed for large-diameter VFD cable. Wide sealing and clamping range. CR chloroprene rubber seal. IP68 per EN 60529. UL Listed acc. to UL 2225. Manufactured according to EN 62444. LOCKNUT NOT INCLUDED — order the matching LMNPT30 separately. Sold each; supplied in boxes of 1. FMNPT3-CEX
